Descripción
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications
& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) | Weight (g) | |||
| Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | Speed: sec/60° | Torque: kg-cm/oz-in | ||||||

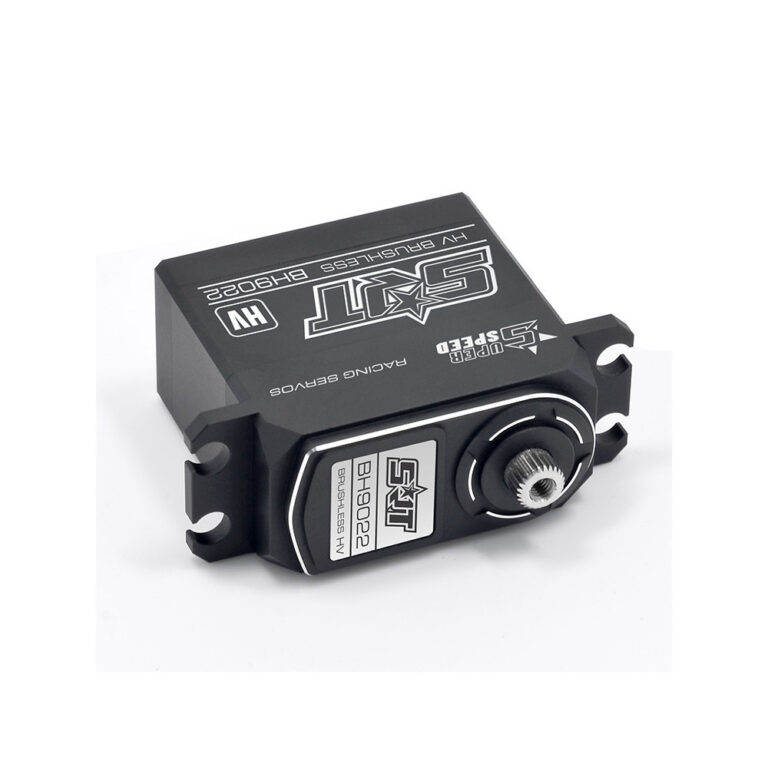

| BH9022 | 0.085 | 18.0/249.9 | 0.065 | 20.0/277.7 | 0.06 | 22.0/305.5 | Titanium & Alu | Brushless | CNC | 40.0*20.0*38.0 | 70.0 |
Application :
1/10 1/8 Electric/ Car
1/10 1/8 Nitro/ Car
1/10 1/8 Off-road
1/10 On-road
Helicopter
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57×0.79×1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm
